Compound counter roll crusher

Scan and add WeChat

Widely used in large and medium-sized activated carbon production enterprises with high output equipment, can also be used in corn, sorghum, pepper, brewing, feed industry material grinding

icon圖標 Tel：131-5373-6907（Mr. Wei）

icon圖標 Address：Yishui County Economic Development Zone, Jining City, Shandong Province

Information details

對輥破碎機

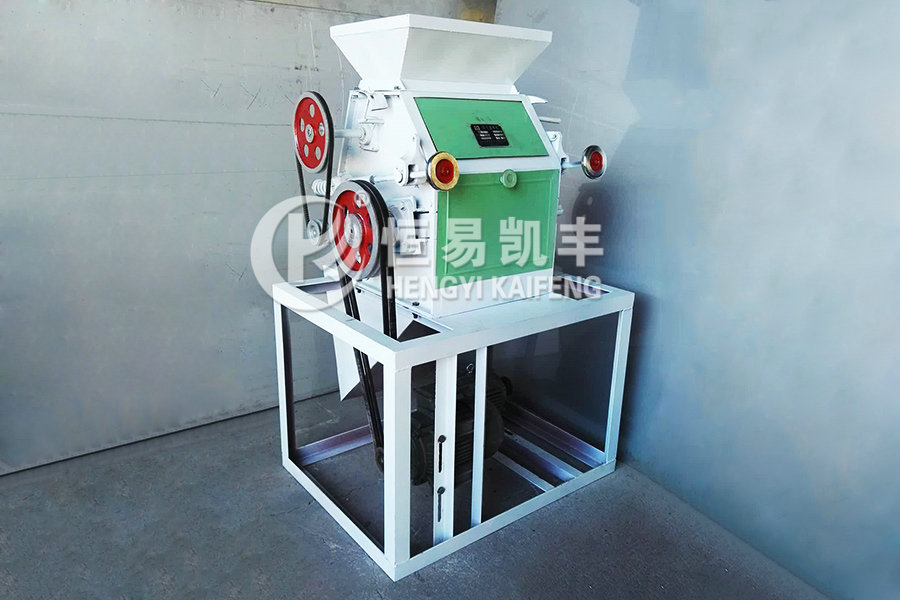

Compound counter roll crusher

Fmfq (s) compound mill is widely used in large and medium-sized activated carbon production enterprises with high output equipment, and can also be used in corn, sorghum, pepper, brewing, feed industry material grinding.

characteristic:

1. Compact structure, novel design, flexible and reliable operation, high production efficiency.

2. Cast iron base, manganese steel frame structure, smooth operation.

3. Synchronous belt drive, eccentric tension mode, reasonable structure, long service life.

4. Feeding system motor drive independently, flexible control, to ensure that the first feed after grinding

5. The roller bearing is disassembled hydraulically without hammering to ensure the matching accuracy of roller and bearing.

參數 parameter 型號 Model	FMFQ（s）50*2	FMFQ（s）60*2	FMFQ（s）80*2	FMFQ（s）100*2
磨輥規格 Grinding roller spec	Φ250-500	Φ250-600	Φ250-800	Φ250-1000
磨輥使用范圍 Scope of use	Φ250 ~ 500
快輥轉速 Quick roll Speed	550
磨輥安裝方式 Installation mode	水平 Horizontal
工作壓力 Pressure	0.4-0.6
磨粉機耗氣量（m3/h） Air consumption	0.06-0.08
喂料形式 Feeding method	雙輥 Double rollers
快、慢輥速比 Roller speed ratio	2：5：1	2：1	1：5：1	1：25：1
電機功率（Kw） Motor power	5.5-15	5.5-18.5	7.5-22	11-22
重量（Kg） weight	2400	2700	2900	3100
外形尺寸 Outline size	140014101850	150014101850	170014101850	190014101850
