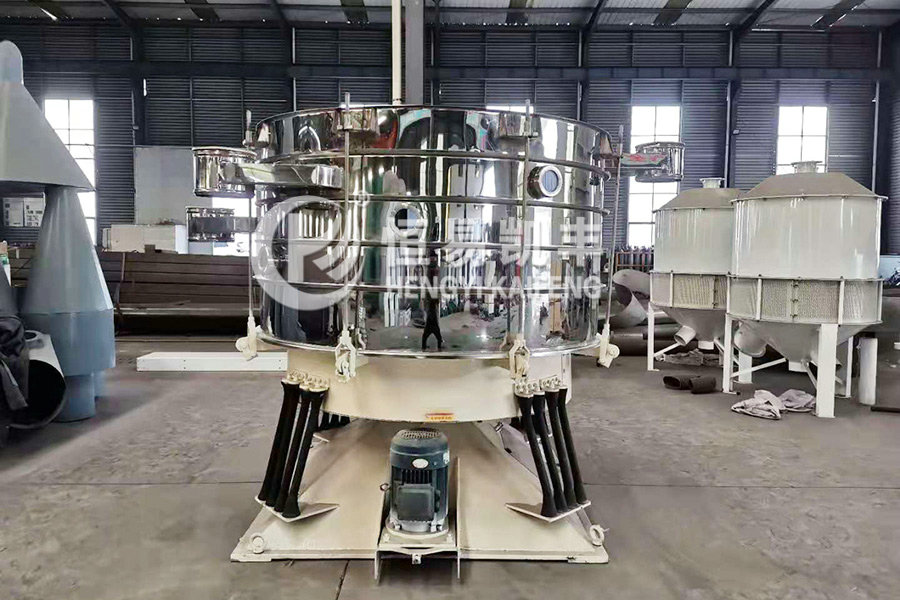

Circular vibrating screen
Ys circular vibrating screen can process all kinds of materials, dry, wet, fine, rough, heavy, light, mesh in 0 ~ 400 mesh can be separated, liquid, slurry, 0 ~ 600 mesh can be filtered; The equipment is equipped with excellent screen cleaning device to reduce the probability of screen blocking; The efficiency and processing accuracy of the network are effectively improved.
High screening accuracy and efficiency, suitable for any powder, granule and mucus.
Small volume, no space, easy to move, outlet can be adjusted 360 degrees.
New grid structure, long service life of screen, only 3-5 minutes to change the screen.
The parts have no dead angle and are easy to clean and disinfect thoroughly.
Materials can be removed automatically and can be operated continuously.
Full airtight, dust does not fly, liquid does not leak, mesh does not block, screening up to 500 mesh.
It can be used as single layer and multi-layer screen
| 參數 parameter 型號 Model | YS600 | YS800 | YS1000 | YS1200 | YS1500 | YS1800 | YS2000 | |
| 有效篩面直徑 sifting area diameter | Φ540 | Φ730 | Φ900 | Φ1100 | φ1400 | Φ1700 | Φ1886 | |
| 有效篩分面積 Sieving area | 0.2281 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2689 | 2.7922 | |
| 篩網規格 Screen specification | 2--500目 | |||||||
| 層數 Layer number | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-3 | 1-3 | |
| 配套功率 Power | 振動電機 Vibrating motor | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | 3.7 |
| 普通電機 Ordinary motor | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3.0 | |
